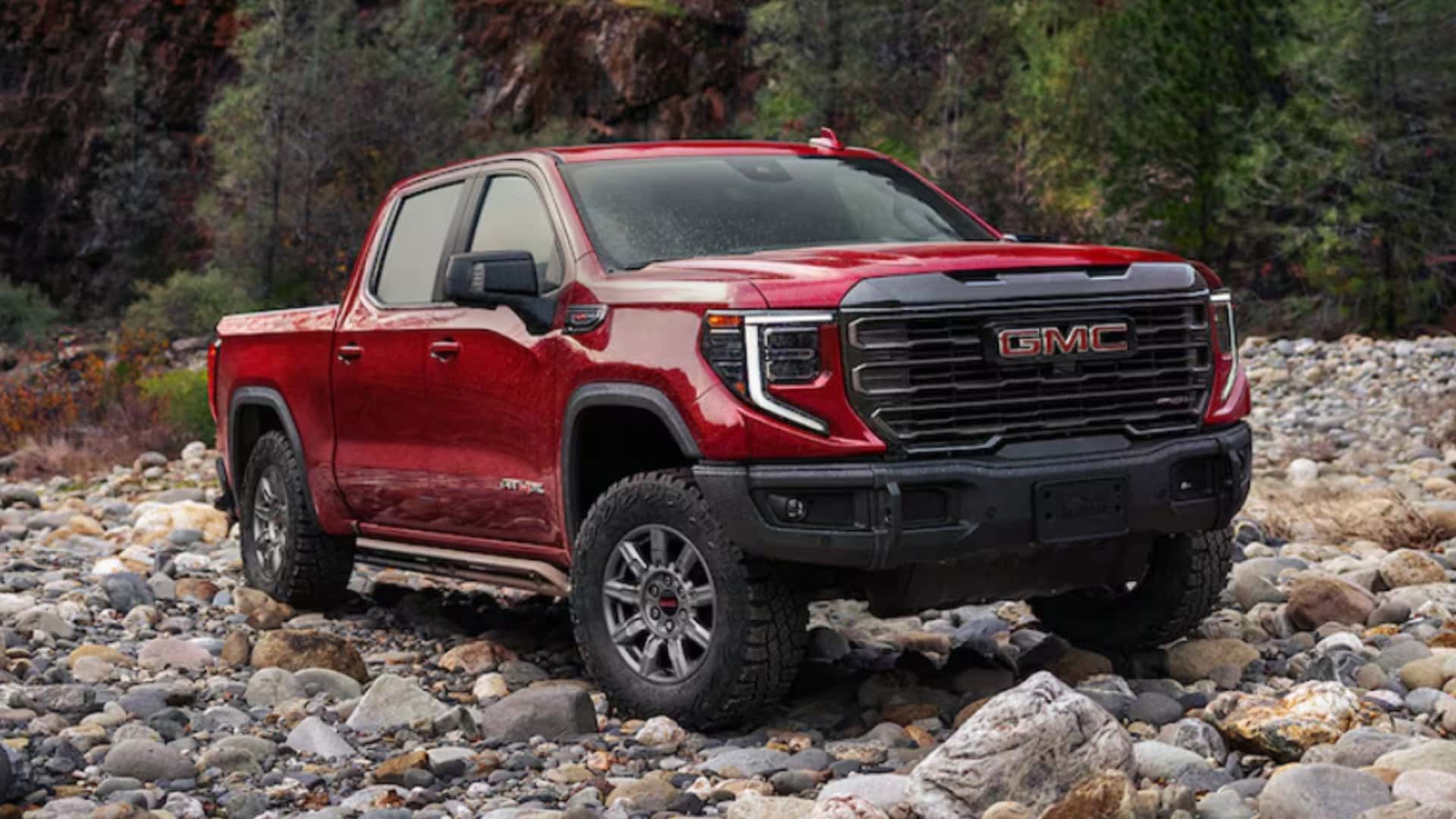

2026 GMC Sierra 1500 AT4X in Hamilton, MT
The 2026 GMC Sierra 1500 AT4X is a four-wheel-drive light-duty pickup engineered with specialized chassis hardware, high-output powertrain options, and measurable truck capability. Its defining mechanical equipment includes Multimatic® DSSV dampers at both axles, an independent front suspension, and a solid rear axle with variable-rate leaf springs. GMC supports this suspension hardware with electric power-assisted steering, four-wheel disc brakes, electro-hydraulic brake assist, and an antilock braking system. Available powertrain specifications include a 6.2-liter V8 and a 3.0-liter inline-six turbo-diesel, both paired with a 10-speed automatic transmission. The truck also provides a Crew Cab interior, published payload and trailering ratings, and a 24-gallon fuel tank.
Engine performance and powertrain engineering
The 2026 GMC Sierra 1500 AT4X offers two powertrain configurations with distinct output characteristics. The 6.2-liter V8 emphasizes horsepower and broad operating capability, while the 3.0-liter turbo-diesel produces its maximum torque at a low engine speed. Both engines use aluminum blocks and cylinder heads, direct fuel injection, and a 10-speed automatic transmission. Their specifications support acceleration, load management, trailer operation, and steady power delivery. The available engine choices also give drivers different combinations of horsepower, torque, and estimated fuel economy.
6.2-liter V8 construction and output
The 6.2-liter V8 uses a cast-aluminum block and cast-aluminum cylinder heads. Its bore measures 4.06 inches, or 103.25 millimeters, while its stroke measures 3.62 inches, or 92 millimeters. The engine produces an SAE-certified 420 horsepower at 5,600 rpm and 460 lb-ft of torque at 4,100 rpm. This output supports the AT4X during acceleration, cargo carrying, and properly configured trailer operation.
GMC equips the 6.2-liter V8 with an overhead-valve layout and two valves per cylinder. Variable valve timing manages valve operation, while Dynamic Fuel Management adjusts cylinder use according to engine demand. Direct high-pressure fuel injection controls fuel delivery to each cylinder. These systems combine a conventional overhead-valve arrangement with electronically managed combustion technology.
The 6.2-liter V8 works with a 10-speed automatic transmission. The transmission begins with a 4.70:1 first-gear ratio and progresses through closely spaced intermediate ratios before reaching a direct 1.00:1 seventh gear. Eighth, ninth, and tenth gears use overdrive ratios of 0.85:1, 0.69:1, and 0.64:1, respectively. A 4.87:1 reverse ratio supports controlled backing and trailer positioning. GMC associates the 6.2-liter engine with a 3.42 axle ratio in the 2026 GMC Sierra 1500 specifications.
3.0-liter inline-six turbo-diesel engineering
The available 3.0-liter turbo-diesel provides a different balance of horsepower and torque. This inline-six engine uses dual overhead camshafts, four valves per cylinder, a cast-aluminum block, and cast-aluminum cylinder heads. Its bore measures 3.30 inches, or 84 millimeters, and its stroke measures 3.54 inches, or 90 millimeters. High-pressure common-rail direct injection manages fuel delivery, and an electronic throttle valve controls airflow. GMC estimates output at 305 horsepower at 3,750 rpm and 495 lb-ft of torque at 1,500 rpm.
The diesel engine reaches its listed torque peak much earlier in the rev range than the 6.2-liter V8. Its 495 lb-ft rating at 1,500 rpm defines a low-speed output profile suited to sustained powertrain demand. GMC pairs the 3.0-liter turbo-diesel with the same 10-speed automatic transmission used with the V8. Standard 2026 GMC Sierra specifications associate the diesel engine with a 3.23 axle ratio, while configurations equipped with the Max Trailering Package use a 3.73 ratio. The transmission’s ten forward ratios allow the powertrain to select different gearing for initial movement, acceleration, direct drive, and overdrive operation.
The published AT4X fuel-economy estimates for the 3.0-liter turbo-diesel are 20 mpg in the city and 22 mpg on the highway. The 6.2-liter V8 AT4X carries estimated ratings of 14 mpg in the city and 17 mpg on the highway. These figures distinguish the expected fuel-use characteristics of the two engine configurations. Both engines operate with the 10-speed automatic transmission, but they produce different horsepower, torque, and efficiency results. The Crew Cab configuration uses a fuel tank with an approximate capacity of 24 gallons, or 91 liters.
AT4X chassis, suspension, steering, and braking
The 2026 GMC Sierra 1500 AT4X uses a chassis configuration designed around model-specific damping equipment and established pickup suspension architecture. Its independent front suspension allows each front wheel to react separately to changes in the driving surface. A solid rear axle and multileaf springs provide the load-bearing structure required at the rear of the truck. Multimatic® DSSV dampers distinguish the AT4X suspension from the twin-tube and Rancho® shock specifications listed for other 2026 GMC Sierra configurations. Electric power-assisted steering and four-wheel disc brakes complete the primary chassis-control systems.
Multimatic® DSSV suspension hardware
The front suspension uses an independent coil-over-shock arrangement. On the AT4X, GMC equips this layout with Multimatic® DSSV dampers instead of the twin-tube shock absorbers specified for the standard 2026 GMC Sierra suspension. The coil-over construction places the coil spring and damper together at each side of the front axle area. Independent wheel movement allows one front wheel to respond to a surface change without requiring identical movement from the opposite wheel. The DSSV dampers provide the AT4X-specific component responsible for controlling suspension motion.
At the rear, the 2026 GMC Sierra 1500 uses a solid axle supported by semi-elliptic, variable-rate, two-stage multileaf springs. The AT4X adds Multimatic® DSSV dampers to this rear suspension arrangement. The variable-rate spring design allows the suspension to respond differently as loading conditions change. Its two-stage construction supports the truck as passengers, cargo, and equipment add weight within the permitted capacity. The solid axle and leaf-spring layout also provide a direct structural foundation for payload and trailer-related demands.
Four-wheel-drive 2026 GMC Sierra models use either a two-speed transfer case or an Autotrac automatic transfer case, depending on the model. This equipment manages the distribution of driveline power within the four-wheel-drive system. The transfer-case arrangement works with the transmission and axle hardware to support operation under changing surface and traction conditions. It also forms an important connection between engine output and the AT4X chassis configuration.
Steering control and brake equipment
Electric power-assisted rack-and-pinion steering manages directional input in the 2026 GMC Sierra 1500 AT4X. The rack-and-pinion mechanism converts steering-wheel movement into lateral motion at the front wheels. Electric assistance reduces the effort required from the driver without using a conventional hydraulic steering pump. This steering design works with the independent front suspension to manage placement and response. It also supports low-speed maneuvering and routine directional corrections.
The braking system uses discs at all four wheels with electro-hydraulic power assist and ABS. GMC specifies vented Duralife™ rotors at the front and rear to support heat management during brake use. The front rotors measure 13 inches by 1.18 inches, or 330 by 30 millimeters. The rear rotors measure 13.6 inches by 0.79 inches, or 345 by 20 millimeters. Electro-hydraulic assistance supports brake application, while ABS manages wheel lock during braking.
The combination of steering, suspension, and braking hardware gives each chassis system a defined function. Electric steering translates driver input into front-wheel movement, and the independent front suspension manages wheel travel. Multimatic® DSSV dampers regulate suspension motion at both axles. The rear leaf springs support changes in load, while the solid axle maintains the rear suspension’s structural connection. Four-wheel disc brakes provide stopping force through vented rotors and an electronically supported hydraulic system.
Crew Cab space and vehicle capacity
The 2026 GMC Sierra 1500 AT4X combines its specialized chassis equipment with a Crew Cab body configuration. Published Crew Cab measurements define the available space for occupants in both seating rows. Capacity specifications also establish the truck’s base mass, gross vehicle weight rating, and payload allowance in a listed 6.2-liter AT4X configuration.
Interior measurements
Crew Cab front headroom measures 43 inches, or 1,093 millimeters, while rear headroom measures 40.1 inches, or 1,019 millimeters. Front legroom measures 44.5 inches, or 1,131 millimeters, and rear legroom measures 43.4 inches, or 1,102 millimeters. The difference between the published front and rear legroom figures is 1.1 inches. These measurements provide substantial longitudinal space across both rows. The front row retains the greater headroom and legroom measurements.
Front shoulder room measures 66 inches, or 1,677 millimeters, while rear shoulder room measures 65.1 inches, or 1,654 millimeters. Front hip room measures 61.2 inches, or 1,554 millimeters, and rear hip room measures 60.2 inches, or 1,530 millimeters. The rear shoulder-room figure sits 0.9 inch below the front measurement. Rear hip room differs from the front measurement by 1 inch. These dimensions show how the Crew Cab distributes occupant space between its first and second rows.
The interior measurements provide technical context for passenger accommodation without changing the truck’s cargo-carrying role. Front occupants receive the highest published figures in each listed category. Rear passengers still receive more than 43 inches of legroom and more than 40 inches of headroom. Shoulder-room measurements exceed 65 inches in both rows. The Crew Cab layout therefore maintains measurable seating space alongside its pickup-box configuration.
Weight and payload ratings
A Crew Cab AT4X with the 6.2-liter V8 and 5-foot-8-inch box has a published base curb weight of 5,550 pounds, or 2,517 kilograms. Its maximum gross vehicle weight rating is 7,100 pounds, or 3,221 kilograms, when properly equipped. Gross vehicle weight includes the vehicle, passengers, cargo, and equipment. The corresponding base payload figure is 1,520 pounds, or 689 kilograms.
Curb weight, payload, and gross vehicle weight rating describe different aspects of the truck’s operating mass. Base curb weight represents the vehicle’s listed starting weight in the specified configuration. Payload provides a reference for the combined weight of occupants and cargo that the truck can carry. Gross vehicle weight rating establishes the permitted combined weight of the vehicle, passengers, cargo, and equipment.
Installed options and accessories can affect the amount of payload available. Passenger weight also uses part of the stated carrying capacity. Cargo placed in the box must remain within the limit shown for the individual vehicle after other weight has been considered. The 1,520-pound base payload rating serves as a comparison figure for the listed AT4X configuration.
Trailering and functional operating capability
The 2026 GMC Sierra 1500 AT4X combines its high-output powertrain, rear suspension, braking system, and driveline equipment with published trailer capability. A Crew Cab AT4X equipped with the 6.2-liter V8 and 5-foot-8-inch box has a listed trailer rating of 8,800 pounds, or 3,991 kilograms. The rating applies when the truck has the proper equipment and operates within its specified limits. Passenger weight, cargo, options, and accessories may reduce the amount the vehicle can tow. Trailer use therefore requires attention to the complete vehicle and load configuration.
Driveline support for trailering
The 6.2-liter V8 supplies 460 lb-ft of torque and routes its output through the 10-speed automatic transmission. The 4.70:1 first-gear ratio supports initial movement by providing the transmission’s greatest forward reduction. Intermediate ratios allow the transmission to adjust engine speed as road speed and power demand change. Seventh gear provides a direct 1.00:1 ratio before the transmission enters three overdrive gears. The 3.42 axle ratio completes the published driveline specification associated with the 6.2-liter engine.
The 4.87:1 reverse ratio supports low-speed backing and trailer positioning. Trailer operation also places demands on the truck’s cooling, braking, steering, suspension, and load-carrying systems. The published trailer rating describes the capability of a properly equipped configuration rather than a universal limit for every 2026 GMC Sierra 1500 AT4X. Added passengers, equipment, and cargo can reduce the weight available for a trailer. Drivers should review the trailering instructions for the vehicle before connecting or pulling a trailer.
Chassis support under load
The variable-rate, two-stage rear leaf springs help the suspension respond as vehicle loading changes. Their semi-elliptic multileaf construction supports the solid rear axle and transfers load through the chassis. Multimatic® DSSV dampers control suspension movement at the rear as well as the front. Four-wheel disc brakes provide stopping force through vented Duralife™ rotors. ABS and electro-hydraulic brake assistance add electronic and hydraulic support to the braking process.
Electric power-assisted steering contributes to low-speed positioning and directional control. The independent front suspension allows separate movement at each front wheel, while the solid rear axle supports the truck’s load-bearing function. The transfer case distributes driveline power through the four-wheel-drive system according to the installed configuration. Each component performs a separate mechanical or control function within the truck.
