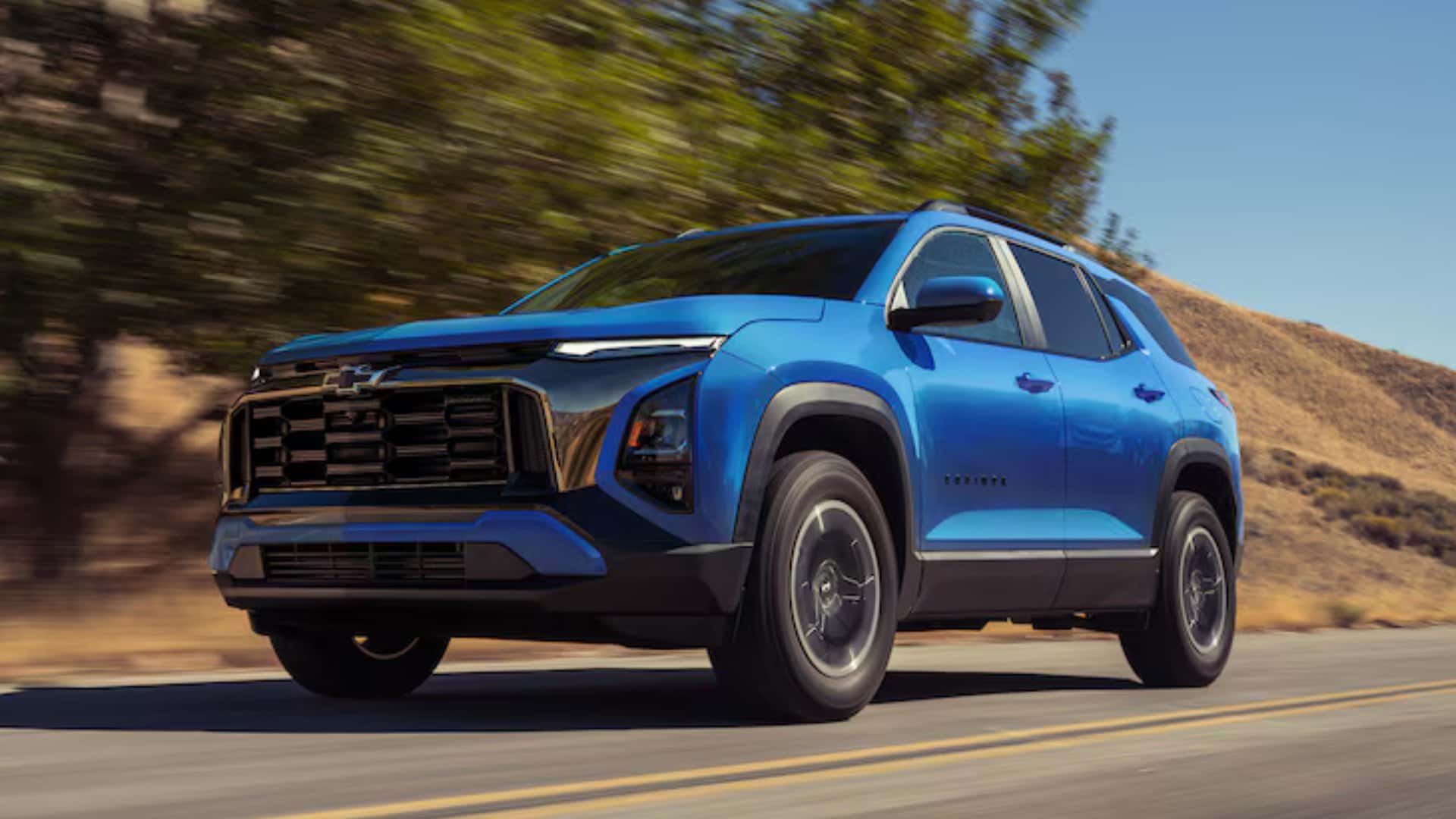

2026 Chevrolet Equinox ACTIV in Hamilton, MT
The 2026 Chevrolet Equinox ACTIV combines trim-specific exterior equipment with the mechanical and dimensional specifications of the 2026 Chevrolet Equinox platform. Standard 17-inch aluminum wheels and 235/65R17 all-terrain tires distinguish the ACTIV within the 2026 trim range. A turbocharged 1.5-liter engine supplies power, while the published vehicle specifications cover front-wheel-drive and all-wheel-drive configurations. The chassis incorporates independent front and rear suspension systems, electric power steering, four-wheel disc brakes, an antilock braking system, and electronic stability control. Interior measurements, cargo volume, trailering capacity, exterior dimensions, fuel capacity, and model-specific equipment further define the functional attributes of the 2026 Chevrolet Equinox ACTIV.
Turbocharged engine and drivetrain engineering
The 2026 Chevrolet Equinox uses a 1.5-liter turbocharged engine with dual overhead camshafts, direct injection, variable valve timing, and automatic stop/start. Chevrolet constructs both the engine block and cylinder head from cast aluminum. The valvetrain uses four valves per cylinder and supports the intake and exhaust functions controlled by the dual overhead camshafts. Direct injection manages fuel delivery, while variable valve timing forms another part of the engine’s operating design. Automatic stop/start completes the listed engine specification by controlling engine operation during applicable driving conditions.
The turbocharged engine produces 175 horsepower, or 130.5 kW, at 5,600 rpm. Published torque output varies according to drivetrain configuration. The front-wheel-drive version produces 184 lb-ft, or 250 Nm, from 2,000 to 4,800 rpm. The all-wheel-drive version produces 203 lb-ft, or 275 Nm, from 2,000 to 4,000 rpm.
Transmission configurations and gear ratios
Chevrolet pairs the front-wheel-drive configuration with a continuously variable transmission. The all-wheel-drive configuration uses a Hydra-Matic 8T45 eight-speed automatic transmission. These transmission types create different mechanical arrangements while operating with the same turbocharged 1.5-liter engine specification. The continuously variable transmission and front-wheel-drive configuration use a 5.81 final drive ratio. The eight-speed automatic and all-wheel-drive combination use a 3.47 final drive ratio.
The Hydra-Matic 8T45 transmission begins with a 4.69:1 first gear and a 3.31:1 second gear. Third gear carries a 3.01:1 ratio, while fourth gear uses a 1.92:1 ratio. The transmission then progresses through ratios of 1.45:1 in fifth gear and 1.00:1 in sixth gear. Seventh and eighth gears use ratios of 0.75:1 and 0.62:1, respectively.
A Drive Mode Selector Dial becomes standard on every 2026 Chevrolet Equinox trim, including the ACTIV. This equipment provides a dedicated physical control for the vehicle’s supported drive-mode functions. Making the dial standard across the trim range establishes a consistent control arrangement for the 2026 model year. The addition appears alongside the distinct transmission, final drive, and torque specifications associated with the front-wheel-drive and all-wheel-drive configurations. It represents one of the documented equipment updates for the 2026 Chevrolet Equinox lineup.
Chassis, suspension, steering, and braking
The 2026 Chevrolet Equinox ACTIV uses a MacPherson® strut front suspension with specifically tuned coil springs. A direct-acting stabilizer bar also forms part of the front suspension assembly. Chevrolet specifies a four-link independent suspension for the rear of the vehicle. This layout provides independent suspension hardware at both ends, with separate designs assigned to the front and rear axles. The published chassis configuration identifies the primary components that manage wheel movement and support vehicle control.
The MacPherson® strut design integrates the front suspension with the specifically tuned coil springs listed for the 2026 Chevrolet Equinox. The direct-acting stabilizer bar adds another defined component to the front suspension structure. At the rear, the four-link arrangement controls each side through an independent suspension design. These components work within a vehicle that has a 107.5-inch wheelbase and nearly equal front and rear track widths. The relationship among the suspension layout, wheelbase, and track dimensions establishes the primary geometry of the chassis.
Electric steering and maneuvering measurements
Dual-pinion rack electric power steering manages directional control in the 2026 Chevrolet Equinox. Chevrolet specifies a 17.0:1 steering ratio for this system. The vehicle also has a turning circle of 37.1 feet, or 11.3 meters. These measurements document both the mechanical steering ratio and the space required for a complete circular maneuver. Together, they provide useful technical context for the steering system and the vehicle’s low-speed maneuvering dimensions.
Four-wheel disc braking equipment
Chevrolet equips the 2026 Chevrolet Equinox with four-wheel disc brakes supported by an antilock braking system and electronic stability control. The braking system also incorporates Duralife™ rotors and low-drag calipers. Disc brakes at all four wheels create a consistent braking-hardware format across the front and rear axles. The antilock braking system manages wheel lock during braking situations that activate the system. Electronic stability control supplements the braking hardware as part of the listed chassis-control equipment.
The Duralife™ rotors and low-drag calipers form integral parts of the published brake specification. Chevrolet combines these components with the four-wheel disc layout rather than limiting disc hardware to one axle. The antilock braking system and electronic stability control add electronic support to the mechanical brake assembly. This combination identifies the principal braking and stability technologies documented for the 2026 Chevrolet Equinox ACTIV. It also places braking hardware, rotor design, caliper design, and electronic control systems within one coordinated chassis specification.
ACTIV equipment and exterior dimensions
The ACTIV receives standard 17-inch aluminum wheels fitted with 235/65R17 all-terrain tires. This all-terrain tire designation differentiates the ACTIV from the other standard tire combinations listed for the 2026 Chevrolet Equinox. The LT also receives 17-inch aluminum wheels as standard, but its corresponding 235/65R17 tires carry an all-season designation. The ACTIV therefore retains the same published wheel diameter and tire size while using a different tire category. Chevrolet lists 8.05 inches, or 204.7 millimeters, of ground clearance at curb condition for the ACTIV trim.
The 2026 Chevrolet Equinox measures 183.2 inches, or 4,653 millimeters, in overall length. Its overall width is 74.9 inches, or 1,902 millimeters, while its overall height measures 65.6 inches, or 1,667 millimeters. A 107.5-inch, or 2,730-millimeter, wheelbase defines the distance between the front and rear axle centers. Front track width measures 63.8 inches, or 1,620 millimeters, and rear track width measures 63.9 inches, or 1,622 millimeters. These measurements establish the vehicle’s footprint and document the relationship among body length, width, height, axle spacing, and wheel placement.
Exterior color details
Polar White joins the Chevrolet 2026 Chevrolet Equinox range as a new exterior color for the 2026 model year. Chevrolet presents the 2026 Chevrolet Equinox ACTIV in Cacti Green with a Summit White roof in the published trim overview. This displayed two-color treatment provides a specific visual identity for the ACTIV model. Its 17-inch aluminum wheels and all-terrain tires add trim-specific equipment beneath the documented exterior proportions. The color presentation and wheel-and-tire package together identify key exterior details associated with the ACTIV configuration.
Interior space, cargo capacity, and utility
The interior dimensions of the 2026 Chevrolet Equinox document passenger space in both front and rear seating areas. Without a sunroof, front headroom measures 40.0 inches, or 1,015 millimeters, while rear headroom measures 39.2 inches, or 995 millimeters. With a sunroof, front headroom measures 38.2 inches, or 970 millimeters, and rear headroom measures 37.8 inches, or 960 millimeters. Front shoulder room measures 57.7 inches, or 1,465 millimeters, compared with 55.8 inches, or 1,417 millimeters, in the rear. These measurements describe the vertical and lateral space provided across the two seating rows.
Front hip room measures 55.2 inches, or 1,403 millimeters. Rear hip room measures 50.8 inches, or 1,291 millimeters. The vehicle provides 104.3 cubic feet, or 2,952.8 liters, of EPA passenger volume without a sunroof. Models equipped with a sunroof have 100.1 cubic feet, or 2,834.9 liters, of EPA passenger volume. The individual headroom, shoulder-room, and hip-room figures provide more detailed dimensional context for the two published passenger-volume configurations.
Cargo volume and rear-seat flexibility
Cargo volume behind the rear seat measures 29.8 cubic feet, or 845 liters. Folding the rear seat expands the published cargo volume to 63.5 cubic feet, or 1,799 liters. These measurements document the cargo area in both the standard passenger-carrying arrangement and the expanded configuration. Chevrolet notes that cargo and load capacity remain limited by weight and distribution. The rear-seat flexibility therefore increases available cargo space while retaining defined operating limits for loading.
The difference between the two cargo measurements shows how rear-seat position affects the available storage area. With the rear seat upright, the 2026 Chevrolet Equinox preserves its rear passenger area while providing the listed volume behind it. Folding the rear seat makes the larger 63.5-cubic-foot measurement available. Both figures relate directly to the vehicle’s 183.2-inch overall length and 107.5-inch wheelbase.
Trailering and fuel capacities
Trailering capacity varies according to the drivetrain configuration. Chevrolet lists an 800-pound, or 363-kilogram, capacity for the front-wheel-drive version. The all-wheel-drive configuration carries a published trailering capacity of 1,500 pounds, or 680 kilograms. Passenger weight, cargo, and installed options can reduce the amount the vehicle can tow. Operators should review the trailering instructions in the owner’s manual before using the vehicle for this function.
Fuel-tank capacity also differs between the two listed drivetrain layouts. Front-wheel-drive versions have an approximate capacity of 14.8 gallons, or 56 liters. All-wheel-drive versions increase that figure to approximately 15.6 gallons, or 59 liters. These capacities accompany drivetrain-specific differences in transmission type, final drive ratio, torque output, and trailering capacity.
